Overview

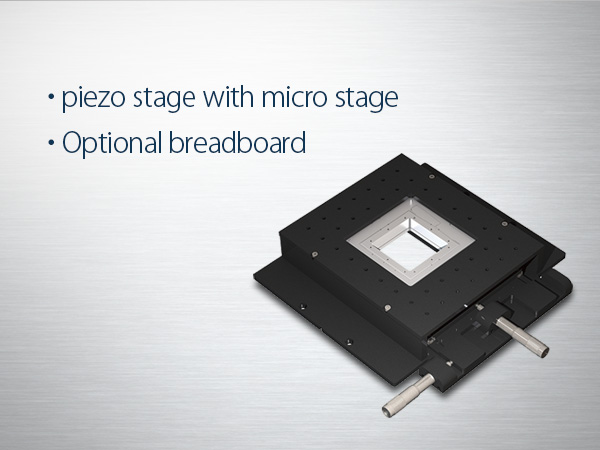

PIEZOCONCEPT’s 3-axis ultra-low profile nanopositioners designed to be integrated in any kind of inverted microscopes. Microscope slides can be accommodated inside BIO3’s rectangular aperture. These piezo stages can be proposed with a coarse positioning Micro stage. As standard, these are made in Aluminum but we can propose the 100µm version stages also in Invar, which leads to higher thermal stability.
Features
- Low profile
- Combination with every microscope
- Hybrid stage

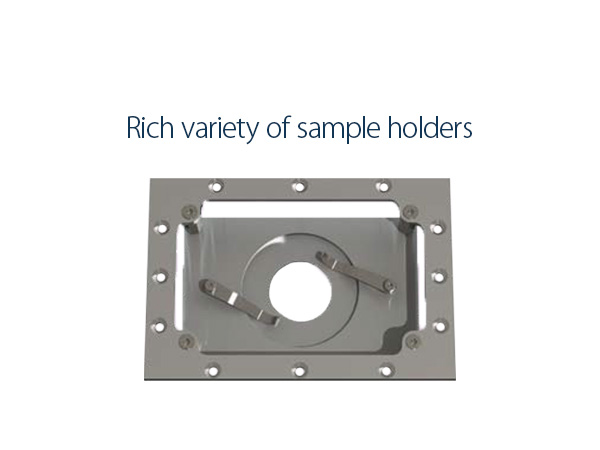

- Rich accessary
- Inver stage for 100 um version
- BIO3：Wide aperture
- Less than 30pm noise floor
Applications
- Super Resolution microscopy
- Nanolithography
- Particle tracking
- Confocal microscopy
- Atomic Force Microscopy
仕様
| BIO3/LT3.100 | BIO3/LT3.200 | BIO3/LT3.300 | |
|---|---|---|---|
| Range of motion XYZ (μm) | 100 | 200 | 300 |
| Resolution XYZ (nm) | 0.1 | 0.2 | 0.3 |
| Typical noise ?oor XYZ (nm) | 0.01 | 0.02 | 0.03 |
| Full range repeatability XYZ (nm) | 0.2 | 0.4 | 0.6 |
| Linearization (typical) | 0.02% | 0.02% | 0.02% |
| Resonant frequency X/Y/Z (Hz) | 500/400/400 | 400/350/300 | 300/250/250 |
| Stiffness X/Y/Z (N/μm) | 0.6/0.5/0.5 | 0.5/0.4/0.4 | 0.4/0.3/0.3 |
| Maximum load (kg) - horizontal use | 1 | 1 | 1 |
| Maximum load (kg) - vertical use | 0.5 | 0.5 | 0.5 |
| Sensor | Silicon HR sensor | Silicon HR sensor | Silicon HR sensor |
| BIO3 Size W x L x H (mm) | 152.5 x 213 x 20.45 | 152.5 x 213 x 20.45 | 152.5 x 213 x 20.45 |
| LT3 Size W x L x H (mm) | 152.5 x 193 x 20.70 | 152.5 x 193 x 20.70 | 152.5 x 193 x 20.70 |
| Material | Al or Invar | Al | Al |
| Cable length (m) | 2 | 2 | 2 |
| Recommended Controller | Standard | Standard | Standard |
