Outline
Iridian’s single band fluorescence bandpass filter sets have been optimized for use in a variety of fluorescence instruments. All filters are thin-film, hard-coated filters for exceptional transmission performance and durability and offer excellent value. Individual excitation, dichroic, and emission filters are also available.
The filters in these sets are sized to be compatible with many microscopes including the Olympus AX,BX and IX series microscopes using cube P/N U-MF2 and Nikon microscopes E200, E400, E600, E800, E1000, TS100, TS100F, TE200, TE300, ME600L, L150A, and some other PHOTO Scopes using Quadrafluor cubes. As well, they fit Nikon microscopes TE2000, 50i, 55i, 80i, 90i, Eclipse Ti, and Epi-Fluor Illuminator Scopes with the TE2000 cube.
Feature
- Deep blocking level
- Long lifetime and high durability
- Cheaper price
- Available to almost microscope
Application
- Fluorescence measurement
- Bio photonics
- Bio medical
- Microscopy
Fluorescence Filter Sets list

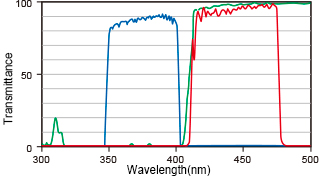

DAPI filter set : FFS-DAPI
Corresponding fluorescent dye：
DAPI
Alexa Fluor 350, AMCA, BFP, sgBFP, Hoechst 33258,
Hoechst 33342, Hoechst 34580,
LysoSensor Blue, Marina Blue, Pacific Blue etc
Specification
| Type | Model | Transparent wavelength |
|---|---|---|
| Exciter | FX 377/50 | 377/50nm (352～402nm) |
| Dichroic | 409 DM | 415～570nm |
| Emitter | FEM 447/60 | 447/60nm (417～477nm) |

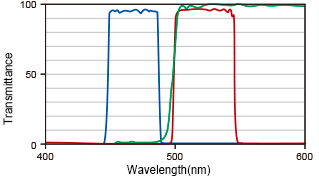

GFP filter set : FFS-GFP
Corresponding fluorescent dye:
GFP (Green Fluorescent Protein)
And similar dye : EGF, DiO, Cy2, YOYO-1, YO-PRO-1 etc
Specification
| Type | Model | Transparent wavelength |
|---|---|---|
| Exciter | FEX 469/35 | 469/35nm(451.5～486.5nm) |
| Dichroic | 497 DM | 505～800nm |
| Emitter | FEM 525/39 | 525/39nm(505.5～544.5nm) |

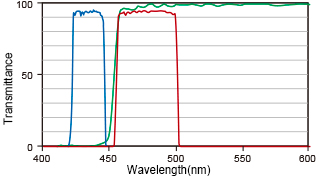

CFP filter set:FFS-CFP
Corresponding fluorescent dye :
CFP
Cerulean, AmCyan1, SYTOX Blue,BOBO-1,
BO-PRO-1 fluorophores etc.
Specification
| Type | Model | Transparent wavelength |
|---|---|---|
| Exciter | FEX 434/17 | 434/17nm(425.5～442.5nm) |
| Dichroic | 452 DM | 460～610nm |
| Emitter | FEM 479/40 | 479/40nm(459～499nm) |

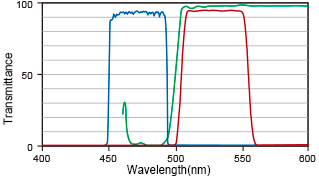

FITC filter set : FFS-FITC
Corresponding fluorescent dye：
FITC
And similar dye : rsGFP, BODIPY, 5-5-FAM, Fluo-4, Alexa, Fluor 488 etc.
Specification
| Type | Model | Transparent wavelength |
|---|---|---|
| Exciter | FEX 475/35 | 475/35nm(457.5～492.5nm) |
| Dichroic | 499 DM | 508～675nm |
| Emitter | FEM 530/43 | 530/43nm(508.5～551.5nm) |

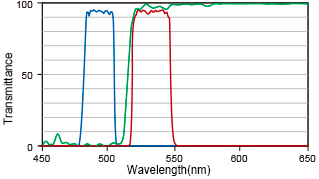

YFP filter set : FFS-YFP
Corresponding fluorescent dye :
YFP (Yellow Fluorescent Protein)
And similar dye : EYFP, Calcium Green-1, Eosin, Fluo-3, Rhodamine 120 etc.
Specification
| Type | Model | Transparent wavelength |
|---|---|---|
| Exciter | FEX 497/16 | 497/16nm(489～505nm) |
| Dichroic | 516 DM | 520～700nm |
| Emitter | FEM 535/22 | 535/22nm(524～546nm) |

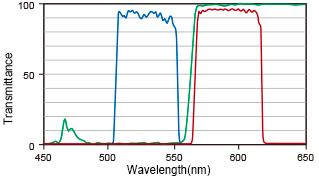

Cy3 filter set : FFS-Cy3
Corresponding fluorescent dye :
Cy3
DsRed, Alexa Fluor 555, Calcium Orange, MitoTracker Orange,
Phycoerythrin, Rhodamine Phalloidin etc
Specification
| Type | Model | Transparent wavelength |
|---|---|---|
| Exciter | FEX 531/40 | 531/40nm(511～551nm) |
| Dichroic | 562 DM | 569～730nm |
| Emitter | FEM 593/40 | 593/40nm(573～613nm) |
Texas Red filter set : FFS-TexasRed
Corresponding fluorescent dye :
Texas Red
And similar dye :
mCherry, mRFP1, 5-ROX, Alexa Fluor, 565 etc.
Specification
| Type | Model | Transparent wavelength |
|---|---|---|
| Exciter | FEX 559/34 | 559/34nm(542～576nm) |
| Dichroic | 585 DM | 595～800nm |
| Emitter | FEM 630/69 | 630/69nm(595～664nm) |

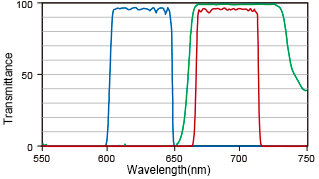

Cy5 filter set : FFS-Cy5
Corresponding fluorescent dye :
Cy5™
And similar dye : Spectrum Red, Lipophilic Tracer,
SYTO Red Fluorescent, TOTO-3, TO-PRO-3,
Nucleic Acid Stains 60, 62, 63 etc
Specification
| Type | Model | Transparent wavelength |
|---|---|---|
| Exciter | FEX 628/40 | 628/40nm(608～648nm) |
| Dichroic | 660 DM | 669～726nm |
| Emitter | FEM 692/40 | 692/40nm(672～712nm) |

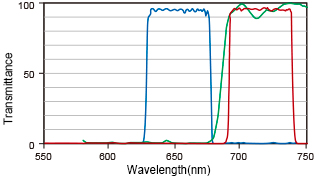

Cy5.5 filter set : FFS-Cy5.5
Corresponding fluorescent dye :
Cy5.5
And similar dye : Alexa Fluor 680, Alexa Fluor 697 etc.
Specification
| Type | Model | Transparent wavelength |
|---|---|---|
| Exciter | FEX 665/40 | 655/40nm(645～685nm) |
| Dichroic | 685 DM | 695～810nm |
| Emitter | FEM 716/40 | 716/40nm(696～736nm) |
