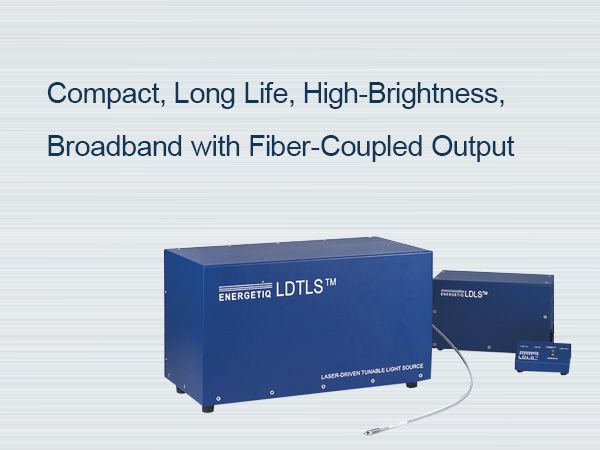

Compact, Long Life, High-Brightness, Broadband with Fiber-Coupled Output
LDTLS Laser-Driven Tunable Light Source

Overview

The Laser-Driven Tunable Light Source (LDTLS™) is a compact, fully integrated and highly stable tunable
broadband light source that is based on our proven Laser-Driven Light Source (LDLS™) technology. The LDTLS™ utilizes our EQ-77 LDLS™ broadband source and features the highest brightness and output flux available in a tunable broadband light source. The LDTLS™ offers an extremely long lifetime of ~10,000 hours between bulb changes for low cost of ownership. It has high stability, very low noise and is coupled with a precision high-performance monochromator for accurate wavelength selection and repeatable light output across the range of 200nm-1700nm.
