Range of drivers for Pockels cells are fast HV switches designed to load and unload capacitance of Pockels cell with several nanosecond edges.

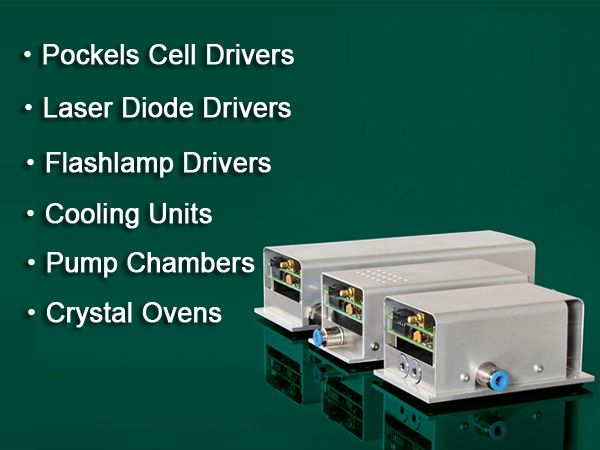

Pockels Cell Drivers and HV Power Supplies-PCD series

Overview

Amplitude of output pulses to Pockels cell is about equal to HV supply voltage. Only exception is DP-FAM series drivers that allow to control the amplitude of each pulse by analog voltage input. Design adaptation for particular OEM customer is possible and can include optimizing of mechanical design, output switch for voltage, repetition rate, rise/fall time and pulse duration lengthening etc. Almost all the drivers can work in up to 5 MHz bursts. Range of DC/DC type HV power supplies is manufactured to provide a complete Pockels driving solution.

Features

• Low and high repetition rate models covering range from single pulse to 6MHz
• Up to 5MHz in burst
• Square pulse shape
• Controlled by an external trigger pulse
• Fast HV switching for both rise and fall edges
• Wide range of pulse durations
• Low jitter
• For BBO, RTP, KD*P, CdTe Pockels cells
• Designed for capacitive load
