Short pulse, High pulse energy, Super compact, Sub-nanosecond diode passive Q-switched laser

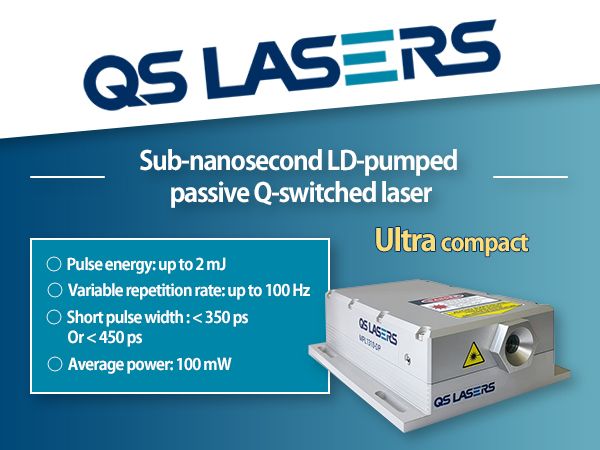

Sub-nanosecond LD-pumped passive Q-switched laser

QS02 Quotation・Inquiry
  • Outline
  • Related Documents
Sub-nanosecond LD-pumped passive Q-switched laser Sub-nanosecond LD-pumped passive Q-switched laser


MPL1310 series DPSS passively Q-switched sub-nanosecond lasers deliver high peak powers at 100 Hz repetition rate. Short laser cavity with the fiber pumped technology is fixed on thermo-stabilized and controlled baseplate which gives extremely stable output parameters performance. Small footprint is welcome point for integration into OEM lasers. Sub-nanosecond pulse duration of < 350 ps, high pulse energy more than 1 mJ, variable repetition rate from 1 Hz to 100 Hz covers many applications like pollution monitoring, DNA analysis, supercontinuum generation and many others. Due to short pulse duration and high pulse energy laser delivers high peak power which is up to 2.8 MW. Optional conversion to green (532 nm) and ltraviolet (355 nm, 266 nm) is also available.

Key Features

  • Up to 1 mJ pulse energy at 1064 nm
  • Short pulse duration < 350 ps
  • Variable up to 100 Hz repetition rate
  • Ultra-compact
  • Passively Q-switched
  • Average power 100 mW
  • High peak power 2.8 MW
  • Guaranteed > 3 Gshot lifetime
  • Other wavelengths (e.g. 1342 nm, 671 nm, 447 nm) are available
