Outline
Lambda’s patented VFM technology offers precise control and uniform distribution of microwave energy for a broad range of thermal applications. Unlike conventional industrial microwave ovens that use a fixed frequency magnetron, VFM products use a broadband microwave amplifier to enable optimum frequency selection and the ability to sweep around a center frequency to ensure good mode density and energy uniformity. Sweep rate control also ensures that VFM technology is compatible with metallic components or fixtures, without arcing, and with electronic circuitry or semiconductors without causing damage.
Features
- Frequency agility
- Uniform energy distribution
- Faster chemical reactions
- Accommodates a wide range of sample holders
- Flexible design offers wide range of research needs
- Enhanced synthesis
- No arcing on conductive materials
Applications
- Advanced materials research
- Semiconductor thermal processes
- Nanomaterials
- Biomaterials
- Chemical synthesis
- Pharmaceuticals
- Biotherapeutics
- Biofuel research

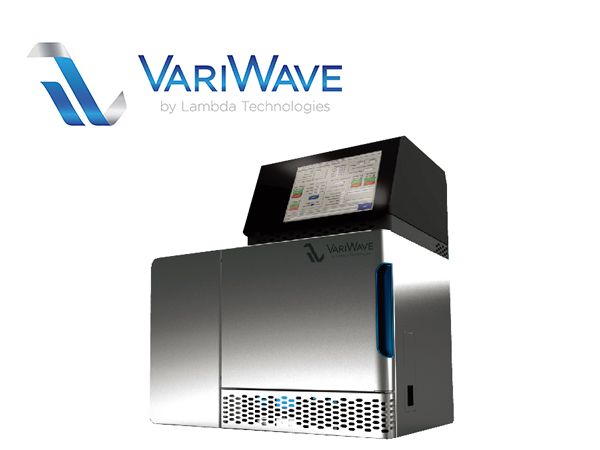

VariWave Specifications
| Models | VariWave 1200-100 | VariWave 1200-200 | |
|---|---|---|---|
| Microwave Power | 90W | 180W | |
| Microwave Frequency | 5.850-6.650GHz | ||
| Control |
Full manual control of power, frequency, sweep rate
Recipe-based, closed loop operation ・Infrared non-contact sensor ・Fiberoptic contact probe ・User supplied (4-20mA) sensor Adjustable temperature set point, ramp, dwell |
||
| Process Chamber | Stainless Steel, Internal LED sample lighting 35.6(W)x29.2(D)x28.0(H)cm (29 liter) |
||
| User Interface |
10" Touch Panel
>USB data port USB Keyboard & Mouse (optional) |
||
| Options/Accessories |
Integrated digital camera (3" view of cavity center)
High performance IR sensor (6mm spot), with laser aiming Handheld microwave leakage detector |
||
| Dimensions | 68(W)×54(D)×73(H)cm | ||
| Weight | 55kg | ||
| Power Requirements | 100-240VAC, 1-Phase, 50/60Hz, 15A (at 120VAC) | ||
| Environmental | 10～32℃, 85％relative humidity, non-condensing | ||
| Cavity Ventilation |
Two cavity ports (NW10) available at rear access panel
Customer may connect either port to an external ventilation system and use the other port as an inlet so that inert gases may be introduced to purge the chamber. Additional port available for customer use (1/4 NPT) |
||
| Power Supply Ventilation | Fan cooled -dual speed to limit noise | ||
| Certifications |
Certified to UL, CAN/CSA-C22.2, and IEC/EN requirements
for Safety and EMC |
||
