Direction

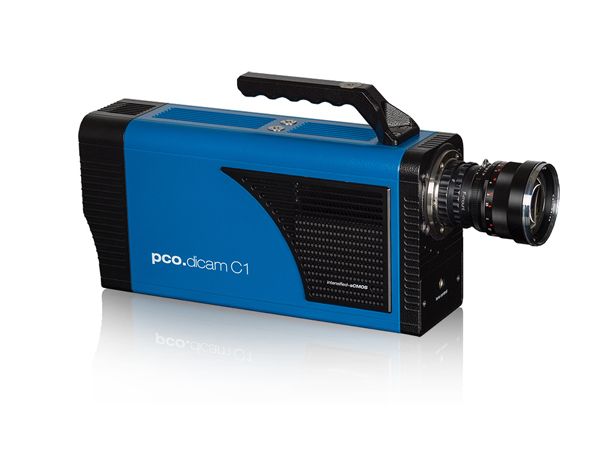

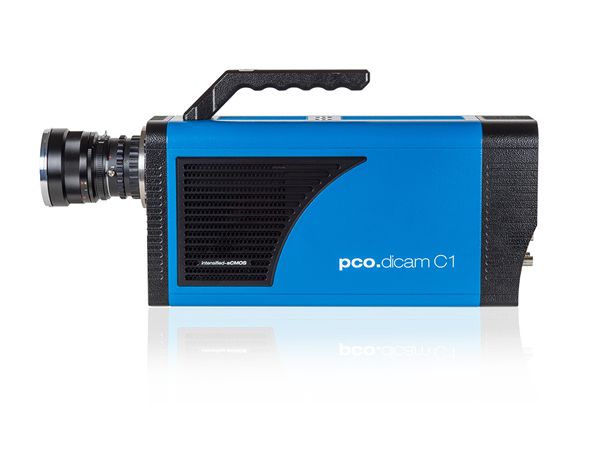

The pco.dicam C1 is the first camera system with image intensifier technology that harnesses the full power of the sCMOS sensor. Unique is the optical connection of the high-resolution 25 mm image intensifier to the 16 bit sCMOS sensor via an efficient tandem lens. Individual photons are detected using the shortest exposure times. Camera Link HS guarantees uncompressed and secure data transfer. The latest standard of high-performance data interfaces enables the bridging of long distances via fiber optic cable.

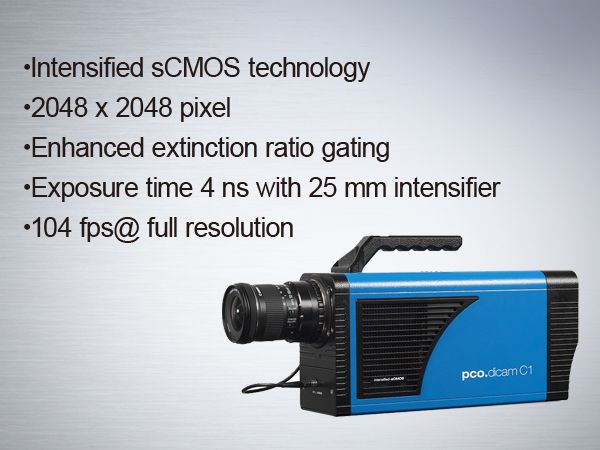

Key Features
- exposure times: 4 ns - 1 s
- 25 mm intensifier
- “ultra speed tandem lens” between image intensifier & sCMOS sensor
- intensified sCMOS technology
- 2048 x 2048 pixels
- 104 fps @ full resolution
- enhanced extinction ratio gating
- Camera Link HS data interface
- F-mount, C-mount or EF mount with Lens Control

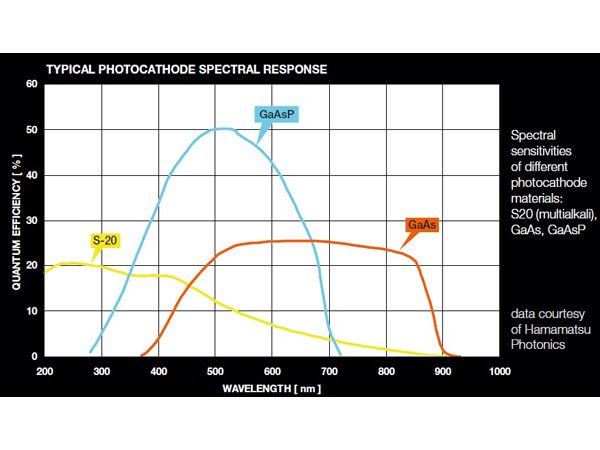

- photocathode material: S20, GaAs, GaAsP (others on request)

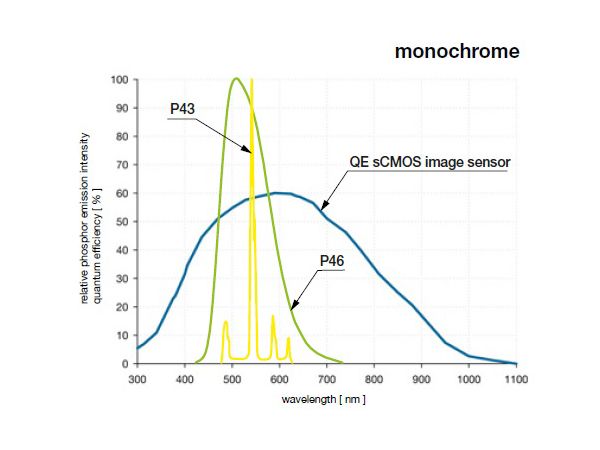

- phosphor screen material: P43, P46
