Single-molecule level imaging possible Achieves both high resolution of approximately 15 nm and a wide field of view of 150 x 150 μm
Super-resolution microscope (single-molecule localized microscope) SAFe Series

Overview

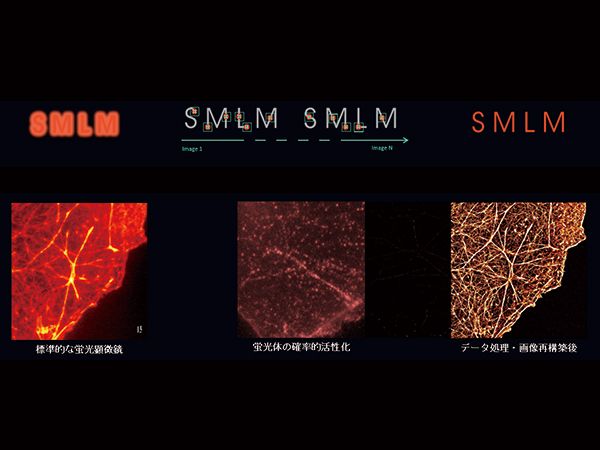

abbelight is a leading venture in fluorescence microscopy based in France. By applying single-molecule localization microscopy (SMLM), it is possible to observe molecules in the living body at high resolution (high resolution?) At 15 nm. Proprietary SAFe light technology illuminates a wide area evenly. In addition, multicolor localization can be investigated for multiple target molecules. In addition to microscopes, our manufacturer also provides optical switching buffers and analysis software to support measurement.

Feature

• Maximum field of view 150 × 150 μm ²
• Position accuracy 15 (X)x15 (Y)x25 (Z) nm³
• resolution
• Three irradiation systems: TIRF (total internal reflection fluorescence), EPI (reflection illumination), HiLo (thin-layer oblique illumination)

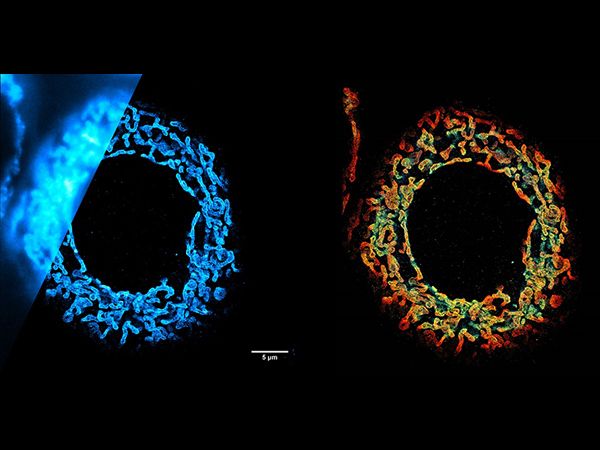

• Unique simultaneous multi-color imaging of up to 4 colors
• With optical switching buffer

Application

• Cytology
• Microbiology
• Immunology
• Neuroscience
• Molecular biology
• Oncology ·genome
• Parasitology
• Observation of RNA polymerase
• Observation of phospholipid membranes and cell membranes
• Localization of lipopolysaccharide

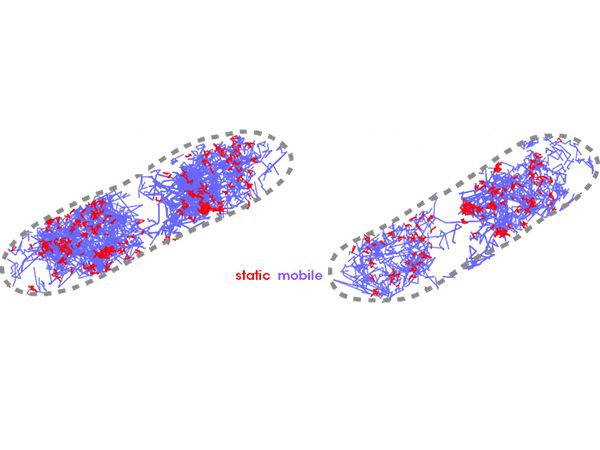

• Observation of E. coli replication sites
• Observation of actin
