Overview

Based on Cavity Ring-Down Spectroscopy (CRDS), TigerOptics Prismatic2 multi-species gas analyzer can measure the sub-ppb level of gas species with absolute accuracy, proven reliability, and fast response in one compact and easy-to-use device. With a combined electronics and sensor module that can simultaneously measures multiple analytes in a wide variety of background gases, the Prismatic2 offers precise analysis over a vast dynamic range.

Application

  • Quality control for laboratory analysis
  • On-line gas monitoring
  • R&D for gas and chemical industries

Features

  • NIST traceable
  • High sensitivity, high accuracy, high reliability, high speed of response
  • Compact, ease of operation, no periodic replacement/maintenance
  • Analytes: H2O, CO, CO2, CH4, NH3, HCl etc.
  • Wide dynamic range
  • Simultaneous multi-species detection
  • Ethernet, isolated 4-20 mA and RS-232 connectivity

Cavity Ring-Down Spectroscopy(CRDS)

  1. 1.A Continuous Wave (CW) diode laser emits a directed beam of light energy through an ultra-high reflective mirror into the absorption cell (cavity).
  2. 2.The light reflects back and forth between two ultra-high reflective mirrors multiple times, up to a total path length of 100 kilometers.
  3. 3.Once the photodiode detector “sees” a preset level of light energy, the light source is shuttered or diverted from the cavity.
  4. 4.On each successive pass, a small amount of light or ring-down signal emits through the second mirror and is sensed by the light detector.
  5. 5.Once the light "rings down", the detector achieves a point of zero light energy in milliseconds, and the measurement is complete.

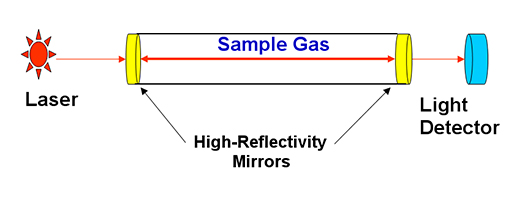

Fig 1. Ring-Down Cavity Cell

CRDS減水カーブ

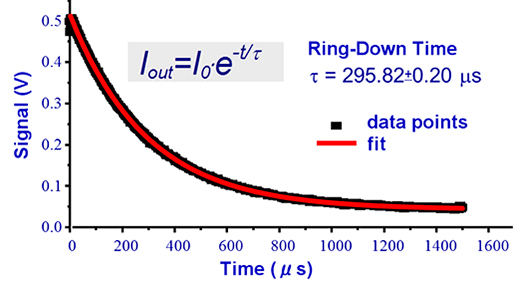

Fig 2. Ring-Down Time

Performance

Operating range See table below
Detection limit (LDL, 24 h peak-to-peak variation) See table below
Sensitivity (3σ) See table below
Precision (1σ, greater of) ± 0.75 % or 1/3 of Sensitivity
Accuracy (greater of) ± 4 % or 1/2 of LDL
Speed of response < 5 minutes to 95 %
Environmental conditions 10 ℃~40 ℃
30 %~80 % RH (non-condensing)
Storage temperature -10 ℃~50 ℃

Gas Handling System and Conditions

Wetted materials 316L stainless steel (Optional Hastelloy), 10 Ra surface finish
Gas connections 1/4” male VCR inlet and outlet
Leak tested to 1×10-9 mbar l / sec
Inlet pressure 20~125 psig (2.4~9.6 bara)
Flow rate <1 slpm (gas dependent)
Sample gases Inert gases, hydrogen and oxygen
Gas temperature Up to 60 ℃

Dimensions and Weight

Electronics unit and sensor, H×W×D [in (mm)] 12.25×17.50×29.65 (311×445×753)
Weight, standard sensor 70.5 lbs (32.0 kg)

Electrical

Alarm indicators User programmable setpoints (1 per channel), Form C relays
Power requirements 90~240 VAC, 50/60 Hz
Power consumption 400 Watts max.
Signal output 0~5 VDC analog, Isolated 0~20 mA or 4~20 mA
User interfaces 10.4” LCD touchscreen,
10/100 Base-T Ethernet,
RS-232, Mouse, Keyboard, 4 USB ports

Environmental Molecular Contaminant Monitor Tiger-i series

Analyte Gas matrix Range LDL Sensitivity
H2O N2 0~50 ppm 10 ppb 5 ppb
H2 0~50 ppm 10 ppb 5 ppb
CDA 0~50 ppm 10 ppb 5 ppb
He 0~10 ppm 2.0 ppb 1.0 ppb
Analyte Gas matrix Range LDL Sensitivity
CO N2 0~1000 ppm 150 ppb 100 ppb
H2 0~1000 ppm 150 ppb 100 ppb
CDA 0~1000 ppm 150 ppb 100 ppb
He 0~800 ppm 130 ppb 90 ppb
Analyte Gas matrix Range LDL Sensitivity
CO2 N2 0~2000 ppm 200 ppb 150 ppb
H2 0~2000 ppm 200 ppb 150 ppb
CDA 0~2000 ppm 200 ppb 150 ppb
He 0~1600 ppm 170 ppb 130 ppb
Analyte Gas matrix Range LDL Sensitivity
CH4 N2 0~10 ppm 1.0 ppb 0.75 ppb
H2 0~10 ppm 1.0 ppb 0.75 ppb
CDA 0~10 ppm 1.0 ppb 0.75 ppb
He 0~6 ppm 0.7 ppb 0.5 ppb
Analyte Gas matrix Range LDL Sensitivity
NH3 N2 0~15 ppm 1.5 ppb 1.1 ppb
H2 0~15 ppm 1.5 ppb 1.1 ppb
Analyte Gas matrix Range LDL Sensitivity
HCl N2 0~5 ppm 0.5 ppb 0.4 ppb
H2 0~5 ppm 0.5 ppb 0.4 ppb

※In addition to the above, PH3, AsH3, HF, H2S analytes are available. (up to 4 analytes in one unit) Please contact us for further information.
